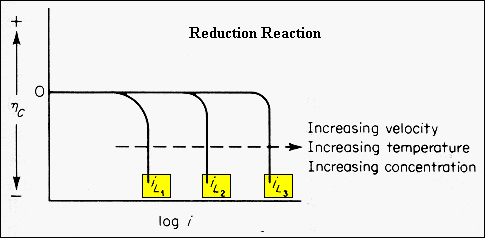

· The diagram indicates that the limiting diffusion current density depends on electrolyte velocity (convective transport), electrolyte temperature (diffusion rate) and increased electrolyte concentration (reduced diffusion distance). Increasing any of these parameters increases the limiting current.
From: M.G. Fontana,
"Corrosion Engineering,"
Wiley (1986)
