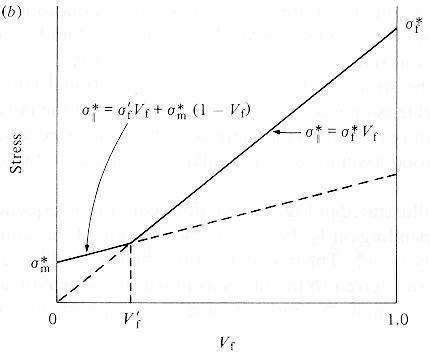

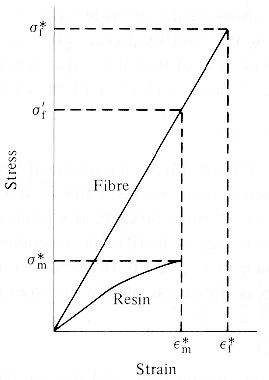

Stress-Strain curve for a fiber and matrix system for which the matrix fractures at a lower strain than the fiber. The Fracture stress of a composite made from these materials (b) as a function of fiber volume fraction.

From: Hull, "Introduction to Composite Materials," Cambridge university Press, (1992)
