| Metal-Oxide-Semiconductor
Devices

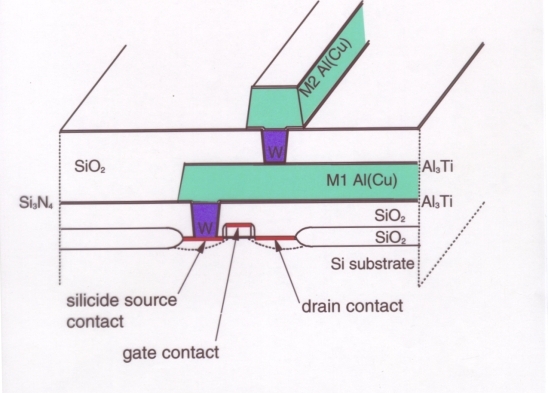

· The diagram shows an MOS device that employs silicon technology. The interconnections between the active components of the structure are an Al-Cu alloy, and tungsten studs are used to make connections between the layers of the six-layer structure. Device dimensions are at the 0.5 micron scale and layer thicknesses are on the order of a few hundred nanometers. |
||||||||||||||
 |
||||||||||||||
