Failure Mechanisms

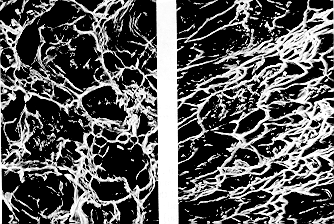

· Scanning Electron Micrographs (SEM) of the 1018 steel fracture surface show the dimples formed by void coalescence in more detail.
· The equiaxed dimples (left) formed in the flat center of the "cup."
· The elongated dimples in the conical shear lip are shown on the right.
· Magnification is x 1250 for both photographs.

From: Askeland,
"The Science & Engineering of Materials,"
PWS Publishing (1994)
