The submerged
propeller support in the Flying Fish II provided mechanical complexity

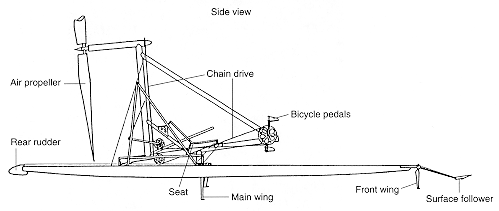

and increased drag. The Decavitator shown in the photograph and diagram overcomes
these problems by using a 3 m air propeller to provide the required
thrust for high speed sprints. At low speeds the craft is supported on the two
5.2 m pontoons, after take-off the two front foils (with surface followers
to control fly-height) and the straight main wing (early V-foil photograph)
support the craft. The two front foils provide roll-stability, and in version
IV the main wing pivots to retract the large area take-off surface and submerge
the lower area high speed foil. Roll stability could also be a problem
with the ladder foil as shown in the movie. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
