EYE LOCATE [OFF]

Next: EYE NORMAL Up: Primary Command EYE Previous: EYE FRAME [Part] [Mode]

EYE LOCATE [OFF]

This command enables the user to visually locate the geometry or part of the mesh of the model.

The locating mode may be switched off with the command EYE LOCATE OFF.

FEMGEN Command

The command EYE LOCATE causes the FEMGEN workbox to be drawn in order to assist the user to visually locate the geometry of the model within the workbox.

FEMVIEW Command

The command EYE LOCATE causes the drawing of an outline representation of the model in order to assist the user to visually locate a subset or a cross-section within the model.

When locating is on, a subsequent EYE FRAME command will use the whole model and not the current subset to calculate the scaling.

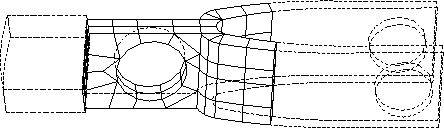

**Figure 2.61:** Locating a sub-set of the model
$\begin{figure} \centerline{ \psfig {figure=diagrams/chap2.eye_locate.fig,width=4in} }\end{figure}$

See also the following commands

'EYE FRAME'
