The ANALYSE modelname command can be used to run an external analysis program. The command executed is dependent on the analysis environment of the model and these can be specified in the resource file as follows:

Femsys.FEMGEN.CommandLine.ANALYSIS ENVIRONMENT : analysis code path

Femsys.FEMGEN.FileExtension.ANALYSIS ENVIRONMENT : input file extension

The command ‘analysis-code modelname.dat’ is then executed as a background process.

The command executed may be a batch file, shell script or executable.

For example:

By setting the following resources:

Femsys.FEMGEN.CommandLine.DIANA : C:\TNO\DIANA7.1\BIN\diana.exe

Femsys.FEMGEN.FileExtension.DIANA : dat

and using the command ANALYSE modelname. This will be used to execute the Diana program in order to analyse the requested model as shown in figure 3.

[003.bmp]

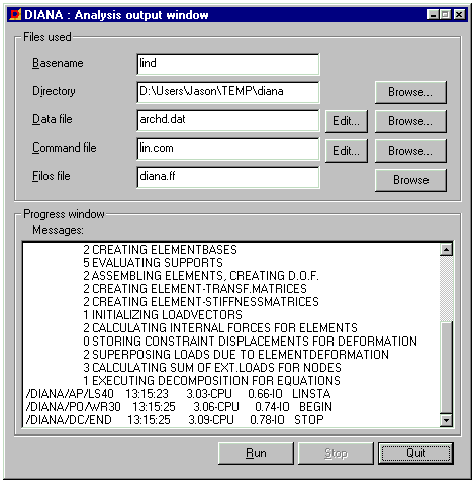

Figure 3: Example of a analysis output window that is accessed through the ANALYSE modelname command
