When a number of FEMGEN and/or FEMVIEW models are displayed simultaneously using the viewports in FEMGV, the models need not be in the same directory.

Viewports can also be selected by using the appropriate “new” icon situated in the tool bar.

Figure 1: Icons for viewports set-up

[view_cli.gif]

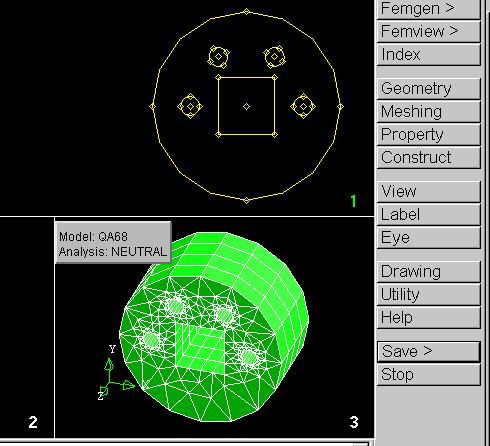

Figure 2: Selection of Viewports by clicking in the Viewport

The selection of a non current viewport can be achieved by a single mouse click in the viewport. The colour of the active viewport number will be in green.
