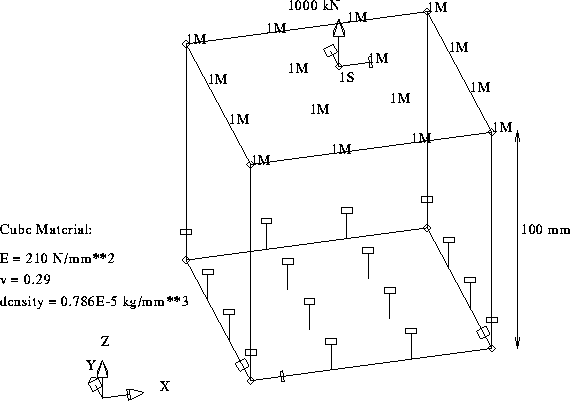

This example illustrates the use of coupled degrees of freedom between a point and a surface. One face of a cube is constrained while the opposite face is connected to a dummy mass to which the load is applied.
PROPERTY FE-PROG ANSYS GEOM POINT P1 0.000000 0.000000 0.000000 GEOM POINT P2 100.000 0.000000 0.000000 GEOM POINT P3 100.000 100.000 0.000000 GEOM POINT P4 0.000000 100.000 0.000000 GEOM POINT P5 0.000000 0.000000 100.000 GEOM POINT P6 100.000 0.000000 100.000 GEOM POINT P7 100.000 100.000 100.000 GEOM POINT P8 0.000000 100.000 100.000 GEOM POINT P9 50.0000 50.0000 110.000 CONSTRUCT TRANS TRA TR1 0.00000 0.00000 100.00 PROP MAT MAT STEM 0.21000E+06 0.29000 0.78600E-05 0.00000 0. PROP PHY GEN MASS 1. 1. 1. 1. 1. 1. GEOM LINE STR L1 P1 P2 3 GEOM LINE STR L2 P2 P3 3 GEOM LINE STR L3 P3 P4 3 GEOM LINE STR L4 P4 P1 3 GEOM LINE STR L5 P5 P6 3 GEOM LINE STR L6 P6 P7 3 GEOM LINE STR L7 P7 P8 3 GEOM LINE STR L8 P8 P5 3 GEOM LINE STR L9 P1 P5 3 GEOM LINE STR L10 P2 P6 3 GEOM LINE STR L11 P3 P7 3 GEOM LINE STR L12 P4 P8 3 GEOM SURF 4SID S1 L1 L2 L3 L4 GEOM SURF 4SID S2 L5 L6 L7 L8 GEOM SURF 4SID S3 L9 L1 L10 L5 GEOM SURF 4SID S4 L10 L2 L11 L6 GEOM SURF 4SID S5 L11 L3 L12 L7 GEOM SURF 4SID S6 L12 L4 L9 L8 GEOM BODY 6SUR B1 S1 S2 S3 S4 S5 S6 MESHING TYPE P9 P-EL 1 MESHING TYPE B1 HE8 1 PROP ATTACH B1 STEM PROP ATTACH P9 MASS PROP BOUNDARY GENERAL CO1 P9 3 S2 PROP BOUNDARY CONSTRAINT CO2 S1 3 PROP BOUNDARY CONSTRAINT CO3 P1 123 PROP BOUNDARY CONSTRAINT CO4 P2 2 PROP BOUNDARY CONSTRAINT CO5 P9 12 PROP LOAD FORCE LO1 1 P9 1.00000E+06 3 CONSTRUCT COORDSYS GLOBAL MESHING GENERATE UTILITY WRITE ANSYS he8cp.ans YES
/BATCH
C***************************************************
C*** ANSYS INPUT DECK *
C*** CREATED BY FEMGV VERSION 4.02 *
C*** TRANSLATED BY FEMGEN-ANSYS VERSION 3.000 *
C*** FILE CREATED: DATE 15/09/95 TIME 16:17:32 *
C***************************************************
C***
C***************************************************
C*** MESSAGE LOGGING IS ON *
C*** EXTERNAL MATERIAL DIRECTORY NOT USED *
C*** EXTERNAL PHYSICAL PROPERTY DIRECTORY NOT USED *
C***************************************************
C***
C*** JOB CONTROL
C***
/FILNAM,he8cp
/PREP7
/TITLE,
ANTYPE,STATIC
C***
C*** ELEMENT TYPE CARDS ...
C***
ET, 1,MASS21 , 0, 0, 0, 0, 0, 0
ET, 2,SOLID45 , 0, 0, 0, 0, 0, 0
C***
C*** PHYSICAL PROPERTY CARDS ...
C***
C*** NAME= MASS
R, 1, 1.000 , 1.000 , 1.000 , 1.000 , 1.000 , 1.000
C***
C*** MATERIAL CARDS ...
C***
C*** NAME=STEM
MP, EX, 1, 210000.0
MP,NUXY, 1, 0.2900000
MP,DENS, 1, 0.7860001E-05
MP,ALPX, 1, 0.0000000
C***
C*** NODE CARDS ...
C***
N, 1, 0.0000000 , 0.0000000 , 0.0000000
N, 2, 33.33334 , 0.0000000 , 0.0000000
N, 3, 66.66667 , 0.0000000 , 0.0000000
N, 4, 100.0000 , 0.0000000 , 0.0000000
N, 5, 0.0000000 , 33.33333 , 0.0000000
N, 6, 33.33334 , 33.33334 , 0.0000000
N, 7, 66.66667 , 33.33334 , 0.0000000
N, 8, 100.0000 , 33.33334 , 0.0000000
N, 9, 0.0000000 , 66.66666 , 0.0000000
N, 10, 33.33334 , 66.66667 , 0.0000000
N, 11, 66.66667 , 66.66667 , 0.0000000
N, 12, 100.0000 , 66.66667 , 0.0000000
N, 13, 0.0000000 , 100.0000 , 0.0000000
N, 14, 33.33333 , 100.0000 , 0.0000000
N, 15, 66.66666 , 100.0000 , 0.0000000
N, 16, 100.0000 , 100.0000 , 0.0000000
N, 17, 0.0000000 , 0.0000000 , 100.0000
N, 18, 33.33334 , 0.0000000 , 100.0000
N, 19, 66.66667 , 0.0000000 , 100.0000
N, 20, 100.0000 , 0.0000000 , 100.0000
N, 21, 0.0000000 , 33.33333 , 100.0000
N, 22, 33.33334 , 33.33334 , 100.0000
N, 23, 66.66667 , 33.33334 , 100.0000
N, 24, 100.0000 , 33.33334 , 100.0000
N, 25, 0.0000000 , 66.66666 , 100.0000
N, 26, 33.33334 , 66.66667 , 100.0000
N, 27, 66.66667 , 66.66667 , 100.0000
N, 28, 100.0000 , 66.66667 , 100.0000
N, 29, 0.0000000 , 100.0000 , 100.0000
N, 30, 33.33333 , 100.0000 , 100.0000
N, 31, 66.66666 , 100.0000 , 100.0000
N, 32, 100.0000 , 100.0000 , 100.0000
N, 33, 0.0000000 , 0.0000000 , 66.66667
N, 34, 0.0000000 , 0.0000000 , 33.33334
N, 35, 33.33334 , 0.0000000 , 66.66666
N, 36, 33.33334 , 0.0000000 , 33.33333
N, 37, 66.66667 , 0.0000000 , 66.66666
N, 38, 66.66667 , 0.0000000 , 33.33333
N, 39, 100.0000 , 0.0000000 , 66.66667
N, 40, 100.0000 , 0.0000000 , 33.33334
N, 41, 100.0000 , 33.33334 , 66.66666
N, 42, 100.0000 , 33.33334 , 33.33333
N, 43, 100.0000 , 66.66667 , 66.66666
N, 44, 100.0000 , 66.66667 , 33.33333
N, 45, 100.0000 , 100.0000 , 66.66667
N, 46, 100.0000 , 100.0000 , 33.33334
N, 47, 66.66666 , 100.0000 , 66.66666
N, 48, 66.66666 , 100.0000 , 33.33333
N, 49, 33.33332 , 100.0000 , 66.66666
N, 50, 33.33332 , 100.0000 , 33.33333
N, 51, 0.0000000 , 100.0000 , 66.66667
N, 52, 0.0000000 , 100.0000 , 33.33334
N, 53, 0.0000000 , 66.66666 , 66.66666
N, 54, 0.0000000 , 66.66666 , 33.33333
N, 55, 0.0000000 , 33.33332 , 66.66666
N, 56, 0.0000000 , 33.33332 , 33.33333
N, 57, 33.33334 , 33.33334 , 33.33332
N, 58, 66.66668 , 33.33334 , 33.33332
N, 59, 33.33333 , 66.66666 , 33.33333
N, 60, 66.66668 , 66.66667 , 33.33333
N, 61, 33.33334 , 33.33334 , 66.66665
N, 62, 66.66668 , 33.33334 , 66.66665
N, 63, 33.33333 , 66.66666 , 66.66666
N, 64, 66.66667 , 66.66667 , 66.66666
N, 65, 50.00000 , 50.00000 , 110.0000
C***
C*** ELEMENT CARDS ...
C***
C*** MAT= NONE , ELEMENT TYPE= MASS21 , PROPERTY= MASS
TYPE, 1
REAL, 1
EN, 28, 65
C*** MAT= STEM , ELEMENT TYPE= SOLID45 , PROPERTY= NONE
MAT, 1
TYPE, 2
EN, 1, 1, 2, 6, 5, 34, 36, 57, 56
EN, 2, 2, 3, 7, 6, 36, 38, 58, 57
EN, 3, 3, 4, 8, 7, 38, 40, 42, 58
EN, 4, 5, 6, 10, 9, 56, 57, 59, 54
EN, 5, 6, 7, 11, 10, 57, 58, 60, 59
EN, 6, 7, 8, 12, 11, 58, 42, 44, 60
EN, 7, 9, 10, 14, 13, 54, 59, 50, 52
EN, 8, 10, 11, 15, 14, 59, 60, 48, 50
EN, 9, 11, 12, 16, 15, 60, 44, 46, 48
EN, 10, 34, 36, 57, 56, 33, 35, 61, 55
EN, 11, 36, 38, 58, 57, 35, 37, 62, 61
EN, 12, 38, 40, 42, 58, 37, 39, 41, 62
EN, 13, 56, 57, 59, 54, 55, 61, 63, 53
EN, 14, 57, 58, 60, 59, 61, 62, 64, 63
EN, 15, 58, 42, 44, 60, 62, 41, 43, 64
EN, 16, 54, 59, 50, 52, 53, 63, 49, 51
EN, 17, 59, 60, 48, 50, 63, 64, 47, 49
EN, 18, 60, 44, 46, 48, 64, 43, 45, 47
EN, 19, 33, 35, 61, 55, 17, 18, 22, 21
EN, 20, 35, 37, 62, 61, 18, 19, 23, 22
EN, 21, 37, 39, 41, 62, 19, 20, 24, 23
EN, 22, 55, 61, 63, 53, 21, 22, 26, 25
EN, 23, 61, 62, 64, 63, 22, 23, 27, 26
EN, 24, 62, 41, 43, 64, 23, 24, 28, 27
EN, 25, 53, 63, 49, 51, 25, 26, 30, 29
EN, 26, 63, 64, 47, 49, 26, 27, 31, 30
EN, 27, 64, 43, 45, 47, 27, 28, 32, 31
C***
C*** SINGLE POINT CONSTRAINT CARDS ...
C***
D, 1,UX ,,,,,UY ,UZ
D, 2,UZ ,,,,,
D, 3,UZ ,,,,,
D, 4,UY ,,,,,UZ
D, 5,UZ ,,,,,
D, 6,UZ ,,,,,
D, 7,UZ ,,,,,
D, 8,UZ ,,,,,
D, 9,UZ ,,,,,
D, 10,UZ ,,,,,
D, 11,UZ ,,,,,
D, 12,UZ ,,,,,
D, 13,UZ ,,,,,
D, 14,UZ ,,,,,
D, 15,UZ ,,,,,
D, 16,UZ ,,,,,
D, 65,UX ,,,,,UY
C***
C*** COUPLED DEGREES OF FREEDOM ...
C***
NSEL,S,NODE,, 65
NSEL,A,NODE,, 17
NSEL,A,NODE,, 18
NSEL,A,NODE,, 19
NSEL,A,NODE,, 20
NSEL,A,NODE,, 21
NSEL,A,NODE,, 22
NSEL,A,NODE,, 23
NSEL,A,NODE,, 24
NSEL,A,NODE,, 25
NSEL,A,NODE,, 26
NSEL,A,NODE,, 27
NSEL,A,NODE,, 28
NSEL,A,NODE,, 29
NSEL,A,NODE,, 30
NSEL,A,NODE,, 31
NSEL,A,NODE,, 32
CP,NEXT,UZ ,ALL
NSEL,ALL
FINISH
/SOLUTION
C******************
C*** LOAD CASE 1
C******************
C***
C*** LOAD CARDS ...
C***
C*** LO1 FORCE
F, 65,FZ, 1000000.
C***
C*** RESULTS OUTPUT CONTROL
C***
OUTPR,NSOL,1
OUTPR,ESOL,1
OUTRES,NSOL,1
OUTRES,STRS,1
OUTRES,EPEL,1
SOLVE
FINISH
/EXIT
C*** FEMGEN-ANSYS TRANSLATION COMPLETED WITH ...
C*** INFORMATION MESSAGES: 0
C*** WARNING MESSAGES: 0
C*** ERROR MESSAGES: 0
