Composite Materials

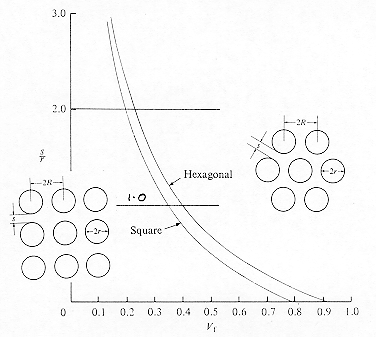

· For regular arrays, the fiber volume fraction, V_f , controls the normalized fiber spacing (s/r) as shown and is the main method of varying the composites mechanical properties.
· A practical range for V_f is between 0.1 and 0.75.

From: Hull, "Introduction to Composite Materials,"
Cambridge (1992)
