· The passage of a dislocation across a slip plane displaces the top and bottom halves of the crystal by the Burgers vector, b, no matter the dislocation type.

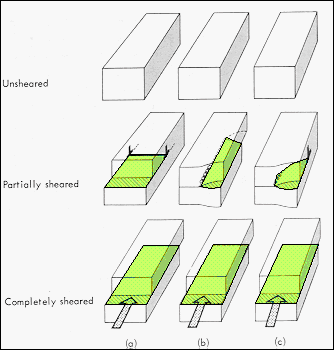

· The diagram illustrates the passage of edge (a), screw (b), and mixed (c) dislocations completely across a slip plane.
· The displacement of the material in the crystal is in the direction of the applied shear stress. The dislocation motion direction depends upon the dislocation type.
|
|
|
|
|
|
|
|
|
|
| |
|
|
From: Barrett, Nix, and Tetelman, The Principles of Engineering Materials, Prentice Hall (1973)
|
|
