Composite
Materials
· The
elastic modulus of a composite material
can be written in terms of the moduli of its fiber and matrix components
and their volume fraction.
· For
the uniaxial fiber reinforced composite shown: Vf = Volume fraction
of fibers,
Vm
= Volume fraction of matrix, Ef = Fiber Young's modulus, Em=
Matrix Young's modulus.

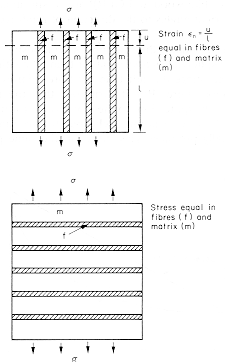

· When
this material is loaded in the longitudinal direction of the fibers, the
fibers and the matrix experience the same strain:
an Iso-strain situation.
· When
the material is loaded transversely to the fiber direction, the fibers
and the matrix experience the same stress:
an Iso-stress situation. |
|
|
|
|
|
|
|
|
|
|
