Materials,
Properties and Design |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The
Effect of Shape
· Once
a careful selection has been made of the materials from which the structure
may be fabricated, the shape of the part becomes important. The same material
with a different shape will have a different mechanical response.
·

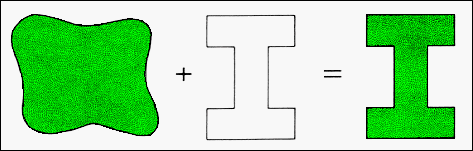

The material (green free-form) is converted into a structural component
(in this case a girder) by selecting an I-shape that distributes the material
mainly at the top and bottom of the structural component. Experiment shows
that this shape is good in sustaining vertical bending loads, and I-beams
of this type are employed in building construction. Selection of different
shapes, or the same shape but with different height-to-width ratios will
change the material performance as a structural element.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Material + Shape =
Component |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
From:
Ashby,
"Materials
Selection in Mechanical Design," Pergamon (1993) |
|
|
|
|
|
|
|
|
|
