The inside radius is 62mm, the outside radius is 80mm, the dimension from the centre of the housing to the left hand end is 127mm, the reinforcing rib is 11mm thick and the base is 8mm thick. The overall thickness is 35mm. A pressure of 11N/mm² is to be applied to the inside surface of the housing.

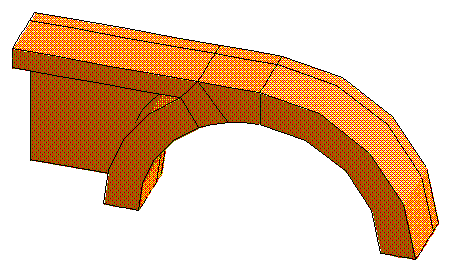

Figure 7.1: Half of the housing
