5.4 Further work
-
Model the Lug using regional surface in order to take advantage of the automatic
meshing capability. The final mesh should look like the one shown in figure 5.4.
-
For the current analysis plot and compare the results from the second loadcase
with those from the first loadcase.
-
Try different mesh patterns to see how they affect the results.

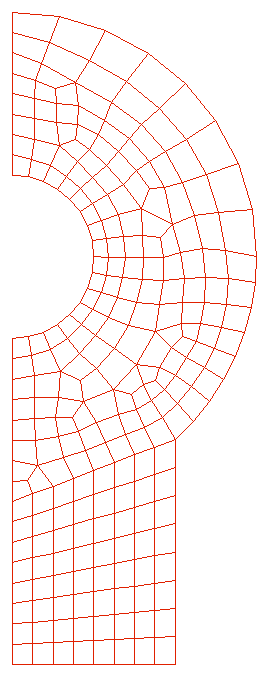

Figure 5.4: Meshing the lug using regional surface
