Beam representation
A new option is introduced in
the neutral environment to allow the view of realistic beam physical properties according
to cross section as shown in the figure below:.
![[008.wmf]](00000008.gif)
![[009.wmf]](00000009.gif)

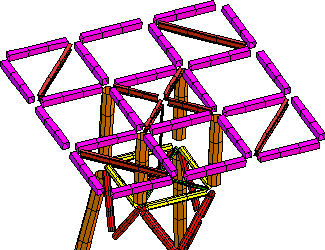

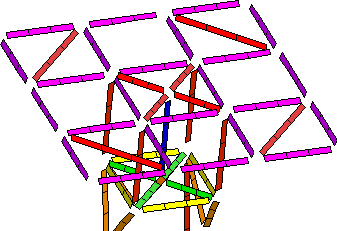

Figure 7: Comparison between an old and a new beam representations
The new command is :
VIEW OPTION HIDDEN BEAM QUICK [factor] /PHYSICAL [factor] /OFF
Note this will entail a change to previous batch files.
