MAE 412-Microprocessors

Assembly of 5 VDC Power Supply Circuit on Printed Circuit Board:

This printed circuit board for the 5 VDC power supply was designed with EAGLE and fabricated onsite with the Othermill. Using the pictures, install and solder the following components in their designated positions:

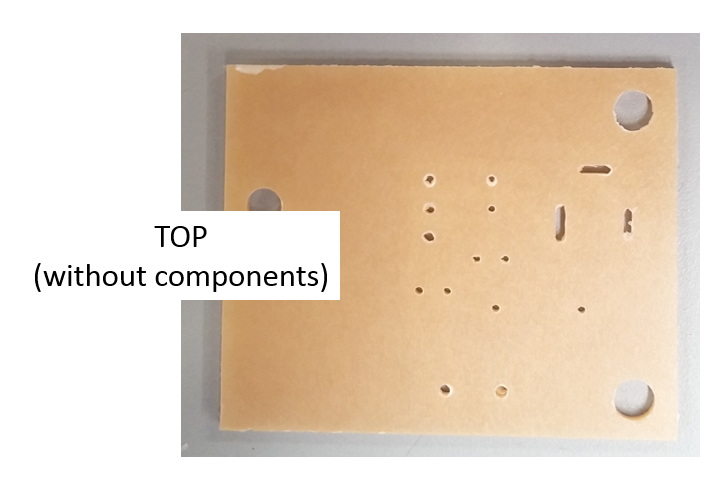

Top view of PCB showing hole locations:

Top View

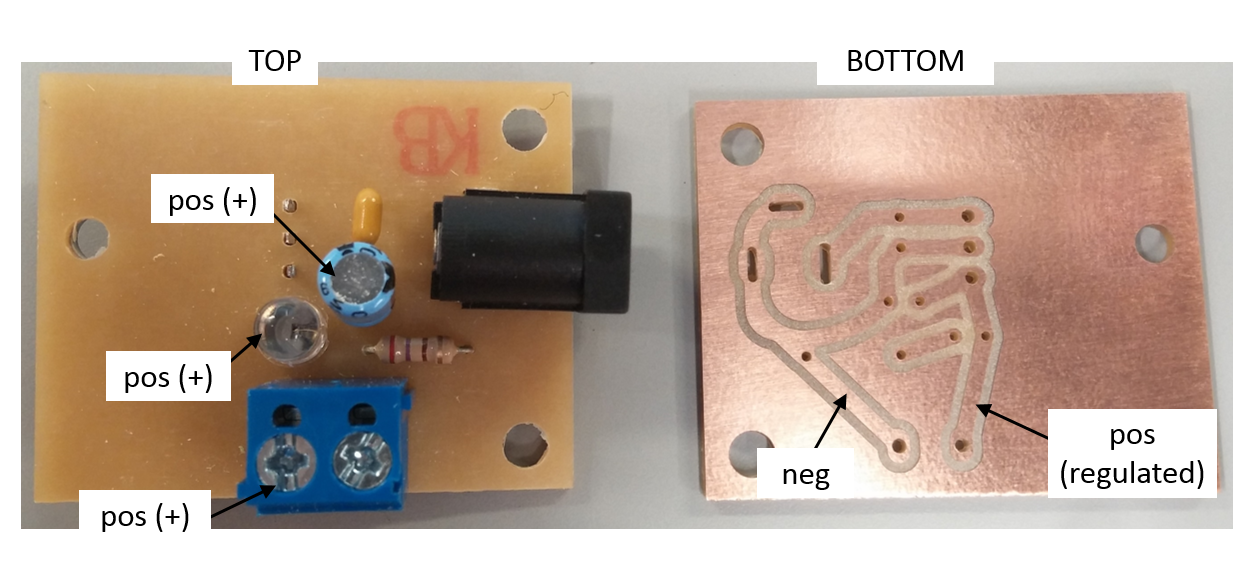

Top view of PCB showing component locations (observe polarity!) and bottom view showing circuit traces:

Top and Bottom Views

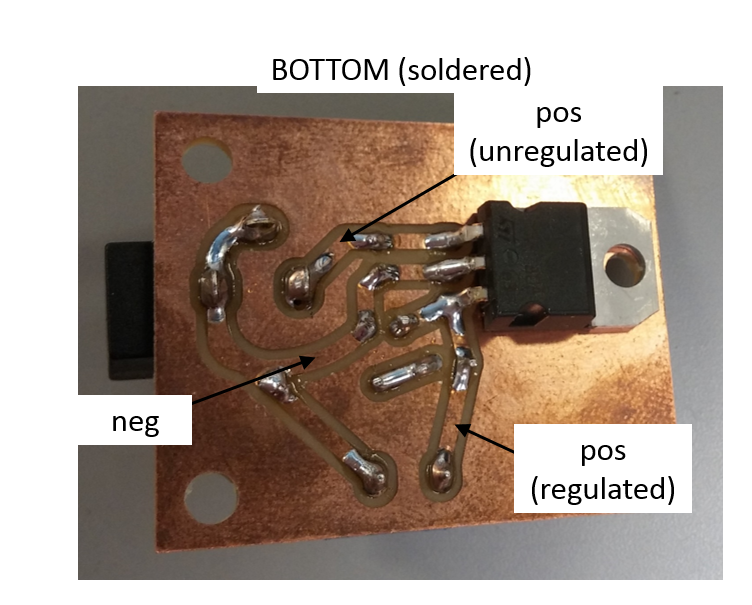

Bottom view showing soldered connections and location of voltage regulator:

Bottom View

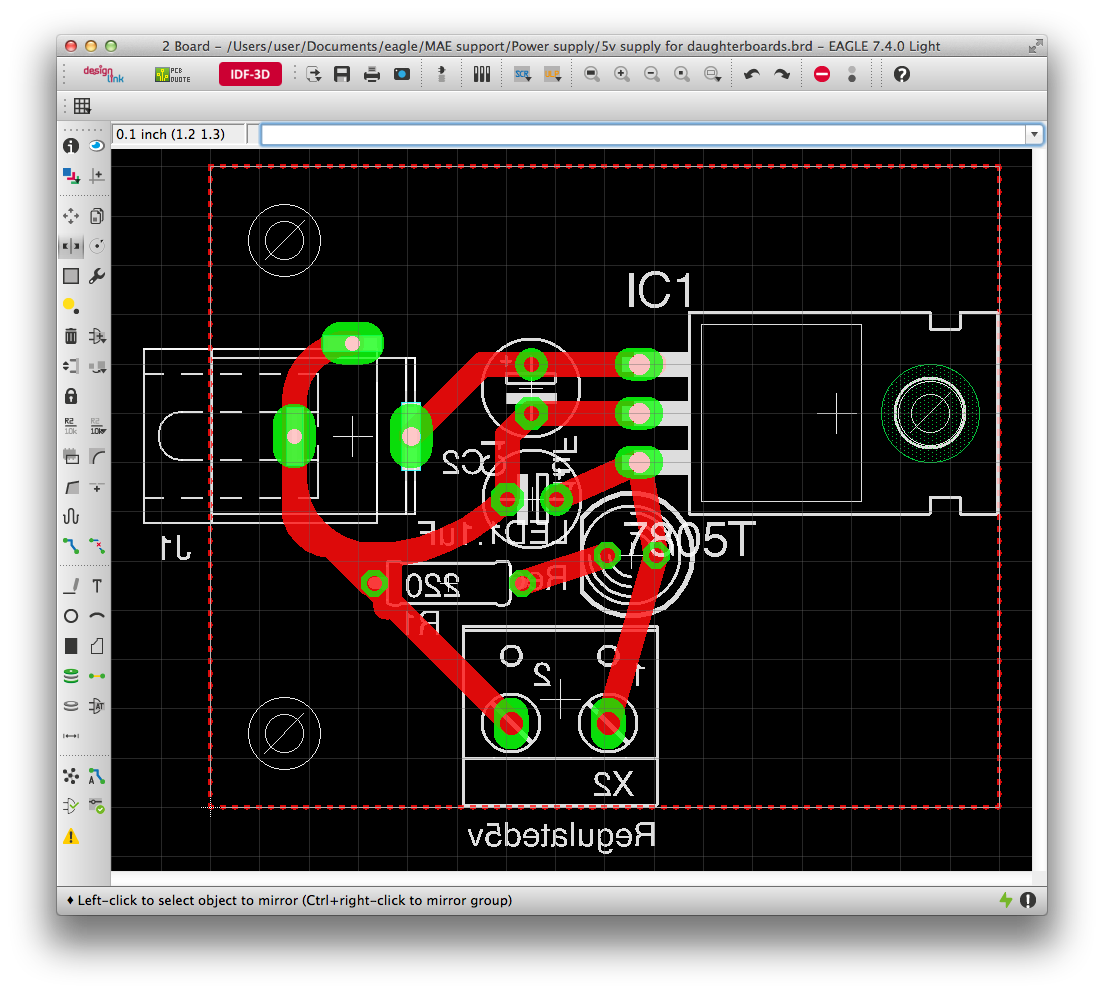

Screenshot of the board editor in EAGLE (note mirroring has been used to enable mounting of components from opposite side):

EAGLE Board Editor

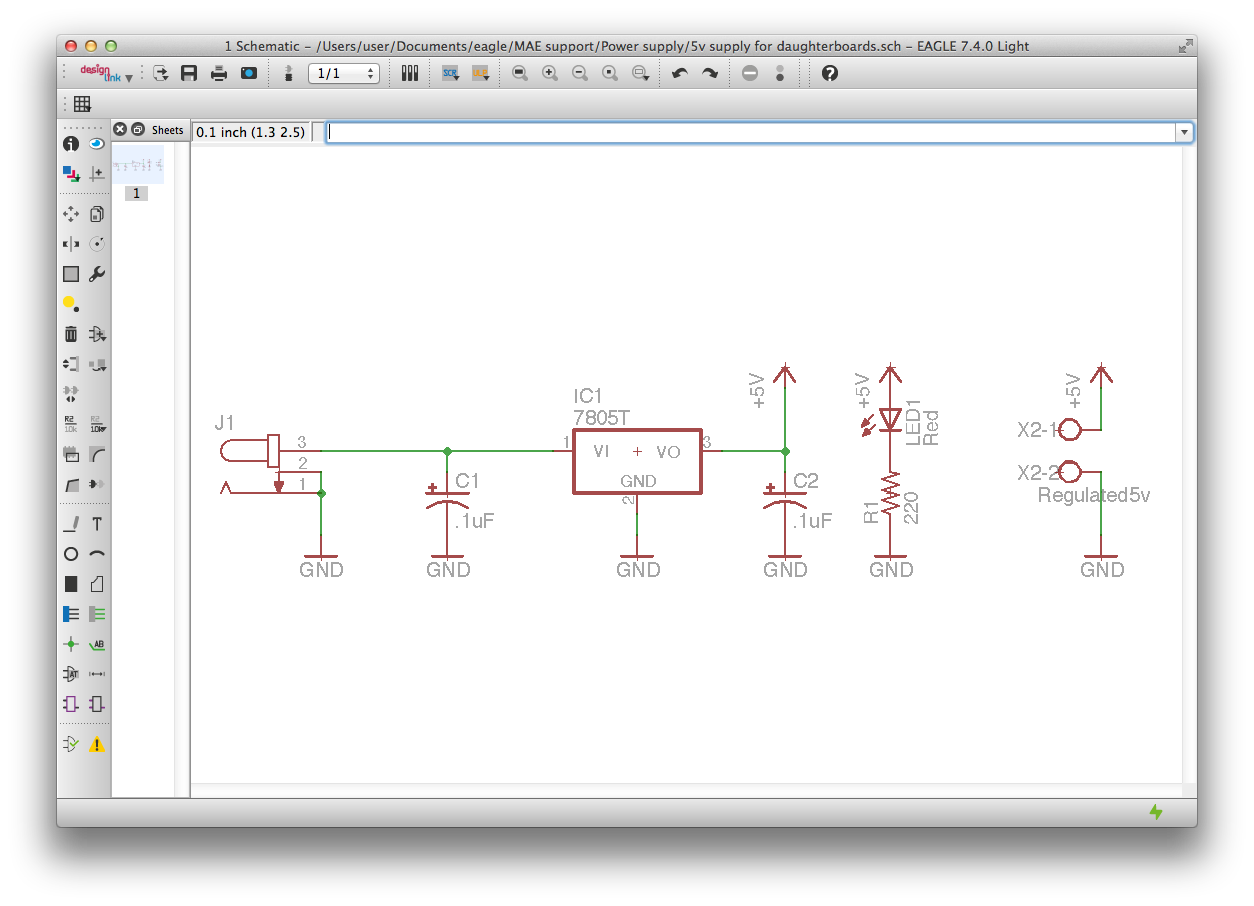

Screenshot of the schematic editor in EAGLE:

EAGLE's Schematic Editor
