Multi point constraints
Implementation of PROPERTY
BOUNDARY MPC RCONNECT MAPPED ...
|
and
|
|
PROPERTY BOUNDARY MPC RCONNECT PROXIMITY ...
|
This allows the user to choose between the old, proximity based algorithm (the default)
and the new, centroid based algorithm.
![[mpc_nor.gif]](mpc_nor.gif)
a) Mapped

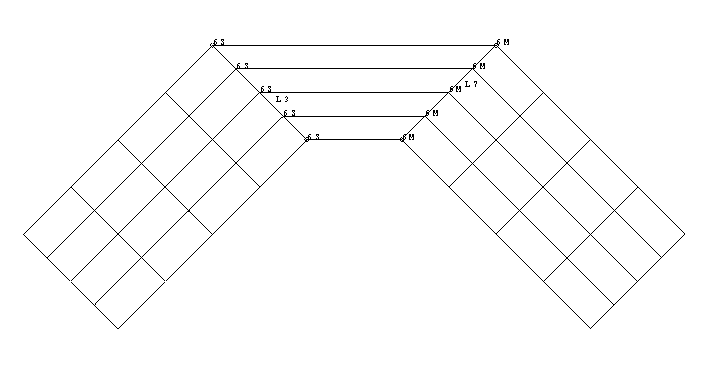

![[mpc_map.gif]](mpc_map.gif)
b) Proximity
Figure 8: Example comparison between mapped and proximity MPC’s
The severity of MPC connection failures has been reduced to warnings. This will allow
subsequent connections to be displayed using LABEL MESH CONSTRAINT.
